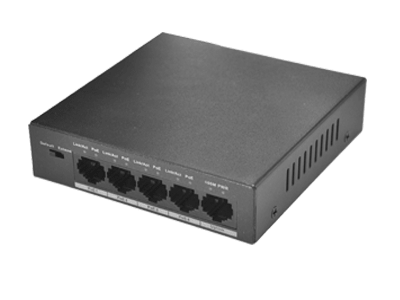

TA-3005-4P / Specification
- Two-layer PoE Ethernet switch
- MAC auto study and aging, MAC address list
- capacity is 1K Support IEEE802.3af, IEEE802.3at standard
- Conform IEEE802.3, IEEE802.3u and IEEE802.3X standards
- Default Mode: The device works as a general
- switch and all ports support 10/100Mbps auto-negotiation.
- Extend Mode: VLAN isolation is enabled.
- Ports 1-4 will be isolated respectively (10Mbps auto-negotiation),
- but they can communicate with the Uplink port.
- Besides, the transmission distance of power and network data is up to 250m.
